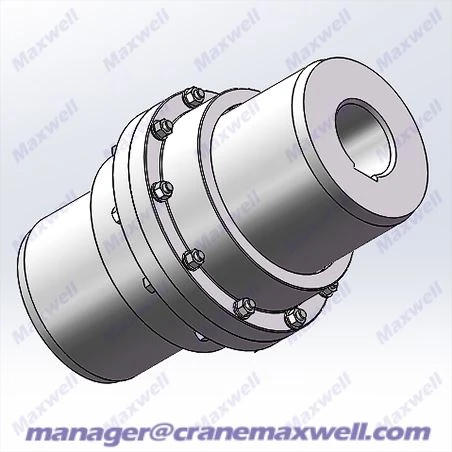

Po'lat uzbekcha

Teektlar birlashishi - bu ikkita aylanadigan qurilmalarni (masalan, dvigatel va qizilchani) ulash uchun maxsus mas'uldir.

So'rov yuborish

Ta'rif

Mahsulot tavsifi

Teektlar birlashishi - bu ikkita aylanadigan qurilmalarni (masalan, dvigatel va qizilchani) ulash uchun maxsus mas'uldir.

Yadro funktsiyasi

elektr uzatish (uskunani bir-biriga aylantirish)

Motor mashinani boshqarish kerak(masalan, suv nasosi yoki fan kabi), ammo motorli va mashina milini bemalol payvandlab bo'lmaydi (chunki ular tekislanmaydi va tebranadi).

Urish vazifasi - bu "moslashuvchan aloqasi", bu ikkala uchida ikkala uchini ikkala uchi bilan kesib, ozgina og'ishga imkon berishiga imkon berish uchun ikkala uch qismini qisqartiradi.

Mashhur metafora:

Bu ikki kishi qo'lida yugurgan. Agar qo'llar to'liq qattiq (qattiq ulanish) bo'lsa, ular yo'ldan bir oz yugurib ketsa, ular qulab tushadilar. Ammo agar qo'l ozgina qimirlasa (moslashuvchan ulanish) bo'lsa, ular tezroq bo'lsa ham, ishlashni davom ettirishi mumkin.

Asosiy xususiyatlar

U qanday muammo hal qiladi?

(1) "noto'g'ri hisob" ga ruxsat berish
Uskunalarni o'rnatishda ikki vallar 100% ga tenglashtirilgan (pastga, chapga va burchakli og'ishlar bo'lishi mumkin).

Uskunaning vitesining tishli tuzilishi asboblarni siqish yoki kiyishdan saqlab turish uchun kichik og'ishlarni "moslashishi" mumkin.

Mashhur metafora:

Mobil telefondan zaryadlash kabelining vilkasi singari, uni biroz egri bo'lsa ham, uni qo'yish mumkin (lekin u juda egilgan bo'lsa, ishlamaydi).

(2) tebranish va ta'sirni buferlash
Uskunalar ishlayotganda tebranish bo'ladi (motor ishga tushganda).

Tishli pishirish + yog 'bir qismini tebranish va jihozlarni taqqoslash va valyutalarni himoya qilishi mumkin.

Mashhur metafora:

Bu kabi mashina shinaning shokni yutish bahori kabi, u qichishishlarni yostiqlash va yo'lovchilarni noqulay his qilishlariga to'sqinlik qilishi mumkin.

(3) qulay deformatsiya va texnik xizmat ko'rsatish
Agar motor yoki dastgohni ta'mirlash kerak bo'lsa, butun tizimni demontaj qilishning hojati yo'q, shunchaki ajratish uchun ulagichli murvatni bo'shating.

Mashhur metafora:

Bu Lego bloklari qisqichiga o'xshaydi, uni ochmasdan ochib, uni elimsiz tortib olib.

Oddiy dastur stsenariylari

qayerda ishlatiladi?

Suv nasos / fanati bilan motor (fabrikalarda eng keng tarqalgan)

Rulonli ruluktor (konveyer kamar, mikser)

Generator va dizel dvigateli (shoshilinch energetika vositasi)

Kamchiliklari

Muntazam moylashni talab qiladi (aks holda jihozlar maydalash va qizib ketadi).

Katta og'ishlarni qoplay olmaydi (agar mil juda egri bo'lsa, u hali ham buziladi).

product-1080-763

Giicl barabanlari bilan bog'lash
Giikrl barabanining asosiy o'lchamlari va asosiy o'lchamlari
Model	Norekal moment Tn Kn. shodlik	Ruxsat berilgan tezlik 【N】 (Rmin)	Shafd teshigi diametrlari	Mil teshigi uzunligi		D	D1	D2	C	H	A	B	e	Aylanish inertia (kg / m2)	Gret ml miqdori	Massa Kg
			d,.d2	Y uzunroq seriallar	Y qisqa seriyalar
Giintl1	0.63	6500	16,18,19	42	-	103	71	50	8	2.0	36	76	38	0.0016	51	3.4
			20,22,24	52	38									0.0030		3.2
			25,28	62	44									0.0031		3.3
			30,32,35	82	60									0.0032		3.5
Giintl2	1.00	6000	20,22,24	52	-	115	83	60	8	2.0	42	88	42	0.0024	70	4.6
			25,28	62	44									0.0023		4.1
			30,32,35,38	82	60									0.0024		4.5
			40,42,45	112	84									0.0025		4.6
Giintl3	1.60	5600	22,24	52	-	127	95	75	8	2.0	44	90	42	0.0044	68	6.1
			25,28	62	44									0.0042		5.5
			30,32,35,38	82	60									0.0045		6.3
			40,42,45,48,50,55,56	112	84									0.0101		6.9
Giikl4	2.80	5100	38	82	60	149	116	90	8	2.0	49	98	42	0.0205	87	9.5
			40.42,45,48,50,55,56	112	84									0.0228		11.3
			60.63,65	142	107									0234		10.5
Giintl5	4.50	4600	40,42,45,48,50,55,56	112	84	167	134	105	10	2.5	55	108	42	0.0418	125	15.9
			60,63,65,70,71,75	142	107									0.0444		16.0
Giikl6	6.30	4300	45,48,50,55,56	112	84	187	153	125	10	2.5	56	110	42	0.0706	148	21.2
			60,63,65,70,71,75	142	107									0.0777		23.0
			80,85,90	172	132									0.0809		22.1
Giintl7	8.00	4000	50,55,56	112	84	204	170	140	10	2.5	60	118	42	0.103	175	27.6
			60,63,65,70,71,75	142	107									0.115		33.1
			80,85,90,95	172	132									0.1298		39.2
			100,(105)	212	167									0.151		47.5
Gicl8	11.20	3700	55,56	112	84	230	186	155	12	3.0	67	142	47	0.167	268	35.5
			60,63,65,70,71,75	142	107									0.188		42.3
			80,85,90,96	172	132									0.210		49.7
			100,110,(115)	212	167									0.241		60.2
Giintl9	18.00	3350	60,63,65,70,71,75	142	107	256	212	180	12	3.0	69	146	47	0.316	310	55.6
			80,85,90,95	172	132									0.356		65.6
			100,110,120,125	212	167									0.413		79.6
			130,(135)	252	202									0.470		95.8
Giikl11	35.50	2700	70,71,75	142	107	325	276	235	14	3.5	81	170	47	1.454	550	97
			80,85,90,95	172	132									1.096		114
			100,110,120,125	212	167									1.235		138
			130,140,150	252	202									1340		161
			160,170,(175)	302	242									1.588		189
Giikl12	56	2450	75	142	107	362	313	270	16	4.0	89	190	49	1.623	695	128
			80,85,90,95	172	132									1.828		150
			100,110,120,125	212	167									2.113		205
			130,140,150	252	202									2.400		213
			160,170,180	302	242									2.728		248
			190,200	352	282									3.055		285
Giikl13	80	2200	150	252	202	412	350	300	18	4.5	98	208	49	3.951	1019	222
			160,170,180(185)	302	242									4.363		246
			190,200,220(225)	352	282									4.541		242
Giikl14	125	2000	170,180(185)	302	242	462	20	335	22	5.5	172	296	63	8.025	2900	421
			190,200,220	352	282									8.800		476
			240,250	410	330									9.275		544
Giikl15	180	1800	190.200,220	352	282	512	470	380	22	5.5	182	316	63	14.300	3700	608
			240,250,260	410	330									15.850		696
			280(285)	470	340									17.450		786
Giikl16	250	1600	220	352	282	580	522	430	28	70	209	354	67	23.925	4500	799
			240,250,260	410	330 380									26.450		913
			280,300,320	470										29.100		1027
Giikl17	355	1400	250,260	410	330 340 450	644	142	490	25	10	194	364	67	43.095	4900	1176
			260(295)300,320	470										47.525		1322
			340,360(345)	550										53.725		1352
Giikl18	500	1210	280(295)300,320	470	380	726	654	540	28	80	222	430	75	78.525	7000	1698
			340,360,380	550	450									87.750		1948
			400	650	540									99.500		2278
Giikl19	710	1050	340,320	470	340	818	748	630	32	80	232	440	75	136.750	8900	2249
			300,(350)360,380(390)	550	450									153.750		2591
			400,420,440,450,460,470	650	540									175.500		3026
Giikl20	1000	910	360,380,(390)	550	450	928	838	720	32	10.5	247	470	75	261.750	11000	3384
			400,420,440,450,460,480,500	650	540									299.000		3984
			530(540)	800	680									360.750		4430
Giikl21	1400	800	400,420,440,450,460 480,500	650	540	1022	928	810	40	11.5	255	490	75	461.600	13000	3912
			530,560,600	800	680									449.400		3754
Giikl22	1800	700	450,460,480,500	650	540	1134	1036	915	40	13.0	265	510	75	734.300	16000	4970
			630,560,600,630	800	680									837.00		5408
			670,(680)	-	780									785.400		4478
Giikl23	2500	610	530,560,600,630	800	680	1282	1178	1030	50	14.5	299	580	80	1517.00	28000	10013
			670,(700)710,750,(770)	-	780									1725.00		11553
Giikl24	3550	500	560,600,630	800	680	1428	1322	1175	50	16.5	317	610	80	2486.00	33000	12915
			670,(700),710,750	-	780									2838.50		15015
			800,850	-	880									3131.75		16615
Giikl25	5600	420	670,(700),710,750	-	780	1664	1538	1390	50	19.0	325	620	80	5082.00	43000	15760
			800,850	-	880									5344.10		15515
			900,950	-	980									5484.00		15054
			1000(1040)	-	1100									5615.20		14513
